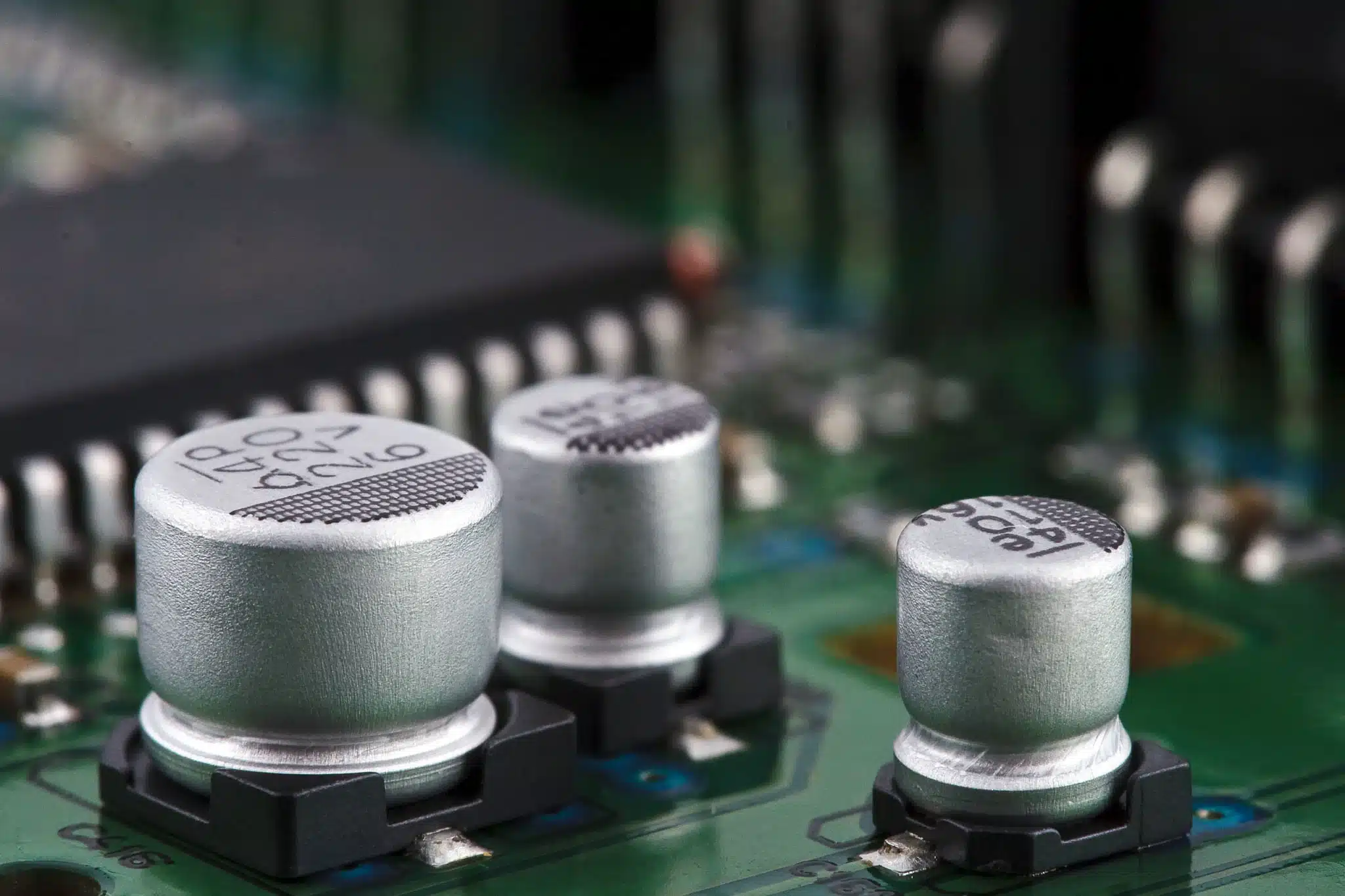

Capacitors on circuit board
Capacitors on circuit board

When starting any electronic project, selecting the right components is essential for success, especially when it comes to capacitors. These small yet crucial elements store and release electrical energy, playing a vital role in stabilizing circuits and powering various functions. Whether you’re a beginner or an experienced builder, understanding the importance of capacitors can help ensure your project runs smoothly. At Summit Electronics, we offer a wide range of capacitor types and expert advice to guide you in making the best selection for your needs.

Understanding Capacitance, Tolerance, and Voltage Rating

Before diving into the specific types of capacitors, it’s essential to grasp three fundamental factors: capacitance, tolerance, and voltage rating.

  • Capacitance: This is the measure of a capacitor’s ability to store electrical charge. It is measured in Farads (F) and can range from picofarads (pF) to microfarads (μF) for most electronic projects.
  • Tolerance: Tolerance refers to the acceptable range of deviation from the specified capacitance. For example, a capacitor with a tolerance of ±10% means that its actual capacitance can vary by 10% from the stated value.
  • Voltage Rating: This indicates the maximum voltage that a capacitor can withstand. Exceeding the voltage rating can lead to the capacitor failing or even exploding, so it is crucial to choose a capacitor with a suitable voltage rating for your project.

Types of Capacitors

There are various types of capacitors available, each with its unique characteristics and applications. Let’s take a closer look at the most commonly used capacitor types in electronic projects.

1. Ceramic Capacitors

Ceramic capacitors are the most widely used type of capacitor due to their small size, low cost, and excellent performance. They are made of ceramic material and have a high capacitance value for their size, making them ideal for use in high-frequency circuits. However, they have a lower tolerance compared to other types of capacitors, typically around ±5%.

2. Electrolytic Capacitors

Electrolytic capacitors are polarized and have a higher capacitance value than ceramic capacitors. They are commonly used in power supply circuits due to their ability to handle high voltages. However, they have a lower voltage rating and a larger physical size compared to ceramic capacitors. They also have a higher tolerance of around ±20%.

3. Film Capacitors

Film capacitors are made of a thin plastic film and have a high tolerance of around ±1%. They also have a high voltage rating, making them suitable for use in power supply circuits. However, they are larger in size and more expensive than ceramic and electrolytic capacitors.

4. Tantalum Capacitors

Tantalum capacitors are polarized and have a high capacitance value for their size. They have a high tolerance of around ±20% and a high voltage rating, making them suitable for use in audio and power supply circuits. However, they are more expensive than other types of capacitors and have a tendency to fail catastrophically if not used properly.

Choosing the Right Capacitor for Your Project

Now that you understand the different capacitor types, let’s look at some factors to consider when choosing capacitors for your electronic project:

  • Application: The type of circuit and its intended use will determine the type of capacitor you need. For example, if you are working on a high-frequency circuit, a ceramic capacitor would be the best choice.
  • Capacitance: As mentioned earlier, the capacitance value is crucial and should be chosen based on the requirements of your circuit.
  • Tolerance: A lower tolerance is generally preferred, but it is essential to consider the impact of a higher tolerance on your circuit’s performance.
  • Voltage Rating: Always choose a capacitor with a voltage rating higher than the maximum voltage in your circuit to avoid failure.
  • Size and Cost: Depending on your project’s size and budget, you may need to choose a capacitor that fits your requirements without breaking the bank.

Capacitors are essential components in any electronic project, and understanding how to choose the right one is critical for ensuring success. With the wide range of capacitor types available, it can seem overwhelming, but considering key factors like capacitance, tolerance, and voltage rating will guide you in making the best decision.

At Summit Electronics, we are committed to helping you find the perfect capacitor for your project. With our extensive selection and expert advice, you can confidently choose the components you need to build a reliable and successful circuit. Contact us today or explore our website for more information on selecting the right capacitors for your next project!
